API Plan 65

Leakage Detection Vessel (LDV)

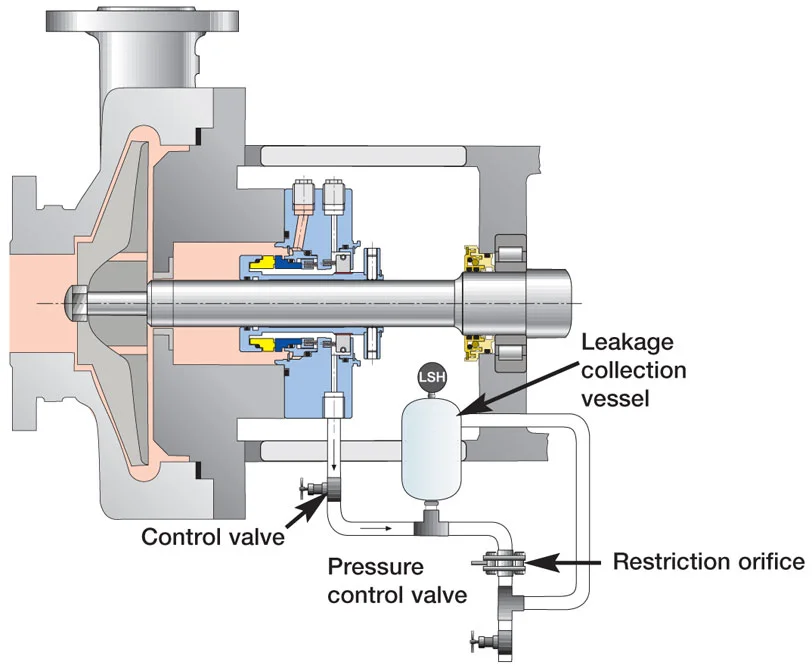

In API Plan 65 arrangements, leakage from the seal faces is collected via a drain port and directed to a liquid-collections system via a vessel equipped with a high-level alarm.

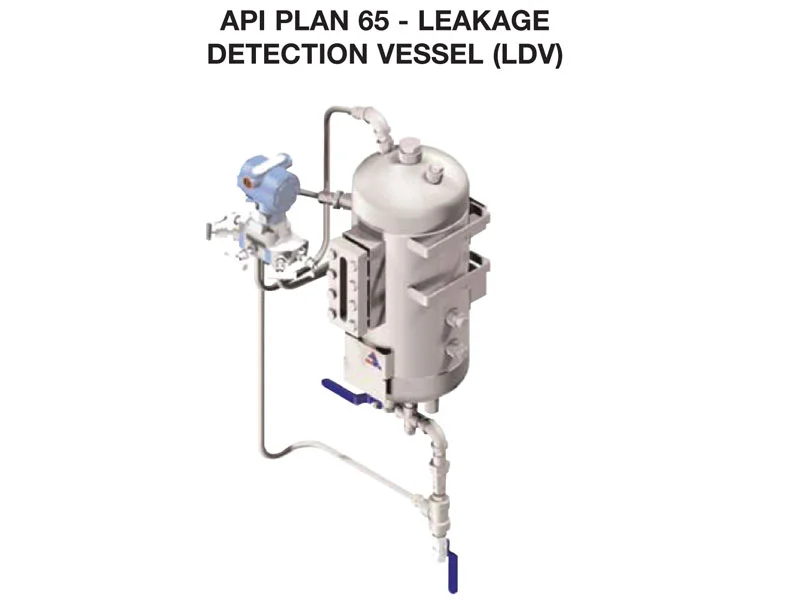

An AESSEAL LDV can be installed to collect the leakage and can be fitted with a level switch to sound the necessary alarm as the vessel begins to fill (switches can be supplied for different zoned environments)

Features:

• Robust vessel to withstand arduous environments
• Integral weld pad level gauge to show leakage level in the vessel
• Level switches can be supplied for different zoned environments
